The James Webb Space Telescope (JWST) has once again opened new windows into the cosmos, providing astronomers with unprecedented observations of a planetary nebula, NGC 1514, also known as the Crystal Ball Nebula. This remarkable nebula, located approximately 1,500 light years away from Earth, has intrigued scientists for years due to its distinct and puzzling features. New observations from JWST, published on February 28 on the arXiv pre-print server, offer a fresh perspective on the nebula’s enigmatic rings, which have now become one of the most intriguing features of this nebula.
What is a Planetary Nebula?
Before diving into the specifics of NGC 1514, it’s essential to understand what a planetary nebula (PN) is. These cosmic structures are not actually planets but rather expanding shells of gas and dust expelled by stars during their evolution. As stars like our Sun transition from the main sequence stage of their life cycle to that of a red giant or white dwarf, they shed their outer layers into space, creating the beautiful, colorful clouds of gas and dust that we call planetary nebulae.
Although planetary nebulae are relatively rare in the universe, they play a crucial role in the study of the chemical evolution of stars and galaxies. As stars age and expel their outer layers, they enrich the surrounding interstellar medium with essential elements, like carbon, oxygen, and nitrogen, which are later recycled into new generations of stars and planets. Understanding planetary nebulae is, therefore, key to understanding the life cycles of stars and the broader evolution of galaxies.
NGC 1514: A Unique Planetary Nebula
NGC 1514, or the Crystal Ball Nebula, is a large, elliptical planetary nebula that originated from a binary star system known as HD 281679. The nebula is located about 1,500 light years away in the constellation Taurus, making it one of the closest planetary nebulae to Earth. The nebula itself is complex, and it has been the subject of numerous studies due to its unusual features.
The nebula’s primary star is a giant star of spectral type A0III, and its companion star, which is responsible for the nebula’s creation, is now a hot, sub-luminous O-type star. These two stars have a unique interaction, with the more massive companion star shedding material into space, forming the nebula. This system’s binary nature likely plays a significant role in the nebula’s structure and evolution.
The Mysterious Infrared Rings
NGC 1514 had already drawn attention for its two axisymmetric rings, which were discovered in earlier infrared observations. These rings are distinct, infrared-bright, and lie almost entirely within the nebula’s outer shell. Dubbed R10, these rings have diameters ranging from 0.65 to 1.3 light years and exhibit a unique morphology that is unlike that of other planetary nebulae.
What makes these rings particularly intriguing is that they are prominent only in the mid-infrared wavelengths, which are not visible to the human eye. While previous observations have indicated the presence of these rings, very little was known about their precise properties or their formation. Their unusual nature warranted further investigation, and that’s where the James Webb Space Telescope (JWST) comes in.
JWST’s Role in Unlocking the Secrets
The team of astronomers, led by Michael E. Ressler of NASA’s Jet Propulsion Laboratory (JPL), turned to the JWST’s Mid-Infrared Instrument (MIRI) to study the rings in unprecedented detail. The researchers chose to observe NGC 1514’s rings with high-spatial-resolution imaging and spatially resolved medium-resolution spectroscopy, focusing on the specific wavelengths where the rings were most prominent.

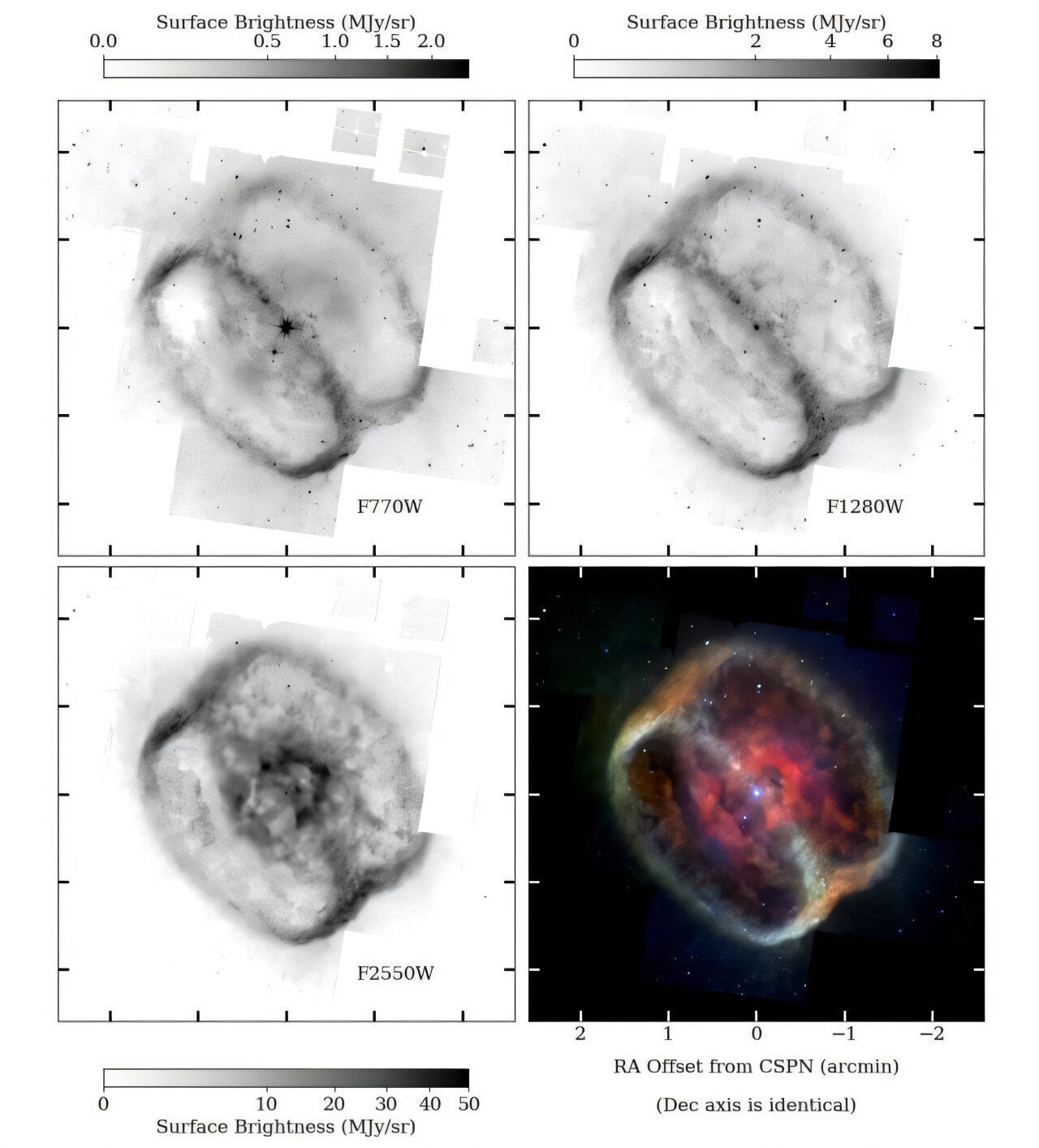

The results from JWST were nothing short of astonishing. The high-resolution images revealed a wealth of turbulent features within the rings, but despite this turbulence, the rings themselves appeared as relatively cohesive structures. These observations also confirmed that the rings were very bright when compared to the inner shell of the nebula, making them stand out even more clearly in the infrared spectrum.
New Discoveries and Key Findings
One of the most significant new discoveries from the JWST observations was the detection of faint emission extending beyond the boundaries of the rings. This emission was observed across all wavelengths and is believed to be the result of ejecta from earlier, less intense outflow activity or from later, higher-velocity winds that passed through the rings. This discovery adds complexity to the understanding of the nebula’s evolution and suggests that there is ongoing interaction between the rings and the surrounding material.
Perhaps the most exciting revelation was the determination that the rings of NGC 1514 appear to be composed entirely of dust emission. The researchers estimated the color temperature of the dust material in the rings to be between 110–200 K, which is quite cool compared to other hotter regions in the nebula. The presence of this dust in the mid-infrared spectrum aligns with what astronomers had hypothesized about the nature of the rings, but the JWST’s detailed observations provided the first concrete evidence.
Unraveling the Origins of the Rings
Understanding the formation of these enigmatic rings has been one of the primary objectives of the new study. Based on the new data from JWST, the astronomers proposed that the rings of NGC 1514 likely originated from material ejected during a slow, heavy mass loss phase of the progenitor star’s evolution. This phase would have occurred long before the faster stellar winds that shaped the rest of the nebula.
After the initial ejection of material, the rings were subsequently shaped by faster stellar winds that created the optically visible nebula. This process, involving both slow and fast winds, led to the formation of the axisymmetric rings, which were likely swept into their current shape by the interaction with these winds. The study suggests that the rings represent a snapshot of the complex interplay between various phases of mass loss and the dynamic processes occurring in the late stages of stellar evolution.
Implications for Our Understanding of Planetary Nebulae
The study of NGC 1514’s rings has significant implications for our broader understanding of planetary nebulae. Planetary nebulae, while relatively short-lived in astronomical terms, provide crucial insights into the evolution of stars and the materials they expel into the interstellar medium. The discovery of these rings and their detailed properties helps scientists refine their models of nebula formation and the processes governing the late stages of stellar evolution.
The findings also highlight the power of the James Webb Space Telescope in advancing our understanding of the universe. By observing objects in the mid-infrared range, JWST is able to capture details that were previously hidden from astronomers using other telescopes, such as the Hubble Space Telescope. This ability to probe cooler regions of space, where dust and gas are more prominent, is revolutionizing our understanding of phenomena like planetary nebulae.
Conclusion
The discovery of the mysterious rings in NGC 1514 represents a new chapter in the study of planetary nebulae. With the James Webb Space Telescope providing unprecedented insights into the mid-infrared realm, astronomers are now able to uncover details that were once beyond reach. These observations not only reveal the intricate structures within NGC 1514 but also shed light on the broader processes involved in the evolution of stars and the formation of nebulae.
As more data from JWST becomes available, scientists are poised to unravel even more secrets of the cosmos, furthering our understanding of the life cycle of stars, the evolution of galaxies, and the complex interactions between stars, gas, and dust. The study of NGC 1514’s rings is just one example of how JWST is revolutionizing modern astronomy and opening new doors to the mysteries of the universe.
Reference: Michael E. Ressler et al, JWST/MIRI Study of the Enigmatic Mid-Infrared Rings in the Planetary Nebula NGC 1514, arXiv (2025). DOI: 10.48550/arxiv.2502.21281
