Researchers from the Technical University of Darmstadt and the Helmholtz Center Dresden-Rossendorf have made a significant advancement in the field of robotics with the creation of flexible robot wings powered by magnetic fields. Inspired by the monarch butterfly’s remarkable flight capabilities, these wings offer precise, battery-free movements and could revolutionize applications in environmental monitoring, rescue operations, and biomedical fields.
Monarch Butterflies: The Inspiration Behind the Innovation
The monarch butterfly is known not only for its vibrant orange and black wings but also for its extraordinary endurance and adaptability during migration. Every year, monarchs embark on a remarkable journey, flying thousands of kilometers between Canada and Mexico. The secret to this long-distance flight lies in the structure and dynamics of their wings. The monarch’s wings combine active movements with passive bending, creating a unique blend of aerodynamic efficiency and energy conservation that has fascinated researchers for years.
By studying the monarch butterfly’s wings, the research team at Darmstadt University of Technology and the Helmholtz Center sought to replicate these natural efficiencies and adaptability in a new robotic wing design. The result is a magnetically-driven wing system that mimics the natural wing movements of the monarch butterfly.
Designing Magnetic Wings: The Development Process
Led by Professor Oliver Gutfleisch from the Institute of Materials Science at TU Darmstadt, and Dr. Denys Makarov from Helmholtz-Center Dresden-Rossendorf, the team set out to build wings made from flexible plastic embedded with magnetic particles. These wings bend and move when subjected to external magnetic fields, reproducing the butterfly-like motions needed for controlled flight and maneuverability.

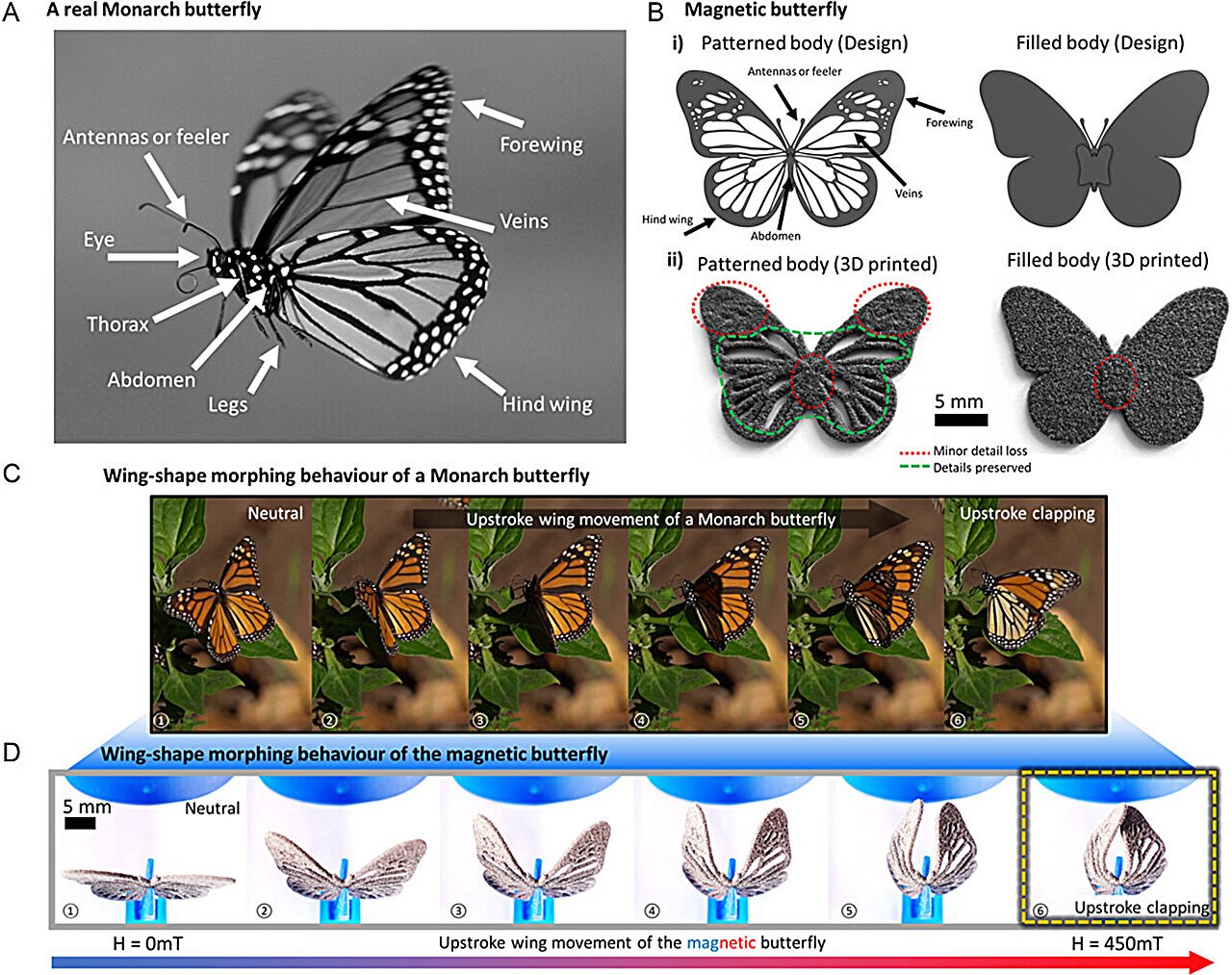

One of the critical challenges in the design process was producing a flexible yet robust structure that could withstand operational stresses. The team created twelve distinct wing prototypes, initially produced using 3D printing. Some of these designs incorporated vein structures inspired by the natural veins in monarch wings. The design team used a combination of finite element analysis and practical experiments to explore how these vein patterns affected the wings’ flexibility, durability, and efficiency in flight.
The study’s findings, published in the journal Advanced Intelligent Systems, showed that wings with vein structures were particularly effective. These wings exhibited greater adaptability and easier bending, which proved essential for mimicking the graceful movements of butterfly flight. As Kilian Schäfer, one of the lead authors of the study, explained, “The biggest challenge was to print ultra-thin, flexible structures that are also robust enough to withstand the loads.”
Magnetic Wings: A New Paradigm for Robotics
The development of these magnetic wings opens up a host of exciting possibilities across several fields. One of the most immediate applications is in environmental monitoring. Small, winged robots could be deployed to monitor pollinator populations, track air quality, and even observe environmental changes with minimal energy consumption. These robots, powered by magnetic fields, could fly over difficult-to-reach areas and gather crucial data without the need for conventional energy sources, making them more sustainable and efficient.
Another major area of interest is disaster relief. The small size and energy efficiency of these robots could be invaluable in disaster zones, where traditional rescue operations face significant challenges. The flexibility of the magnetic wings allows these robots to fly through rubble and debris, searching for survivors in areas that might be inaccessible to humans or other machines. These robots could be deployed for search-and-rescue missions, potentially saving lives by reaching places too dangerous for traditional rescue teams.
In addition to these applications, the bio-inspired wings have far-reaching implications for biomedical robotics. The magnetic wings could form the basis for lightweight robots with precisely controlled movements, making them suitable for minimally invasive surgeries. These robots could perform delicate operations on sensitive tissues, offering greater precision and reducing the risk of complications. The use of flexible, magnetic systems opens new doors for shape-shifting robots that could navigate complex and confined spaces within the human body, offering a new paradigm for surgical interventions.
Beyond medical applications, this research into magnetic wings and bio-inspired robotics has the potential to influence the development of artificial muscles and intelligent materials that can change shape on demand. Such technologies could revolutionize industries ranging from prosthetics to smart textiles and adaptive structures in architecture.
Challenges and Future Development
While the magnetic wings represent a significant breakthrough, there are still several hurdles to overcome before the technology can be fully deployed in real-world applications. Currently, the wings rely on external magnetic fields to function, limiting their autonomy. For the robots to become fully self-sufficient, miniaturized magnetic field generators would need to be integrated into the wings themselves. As Muhammad Bilal Khan, another lead author of the study, pointed out, “Future developments could integrate miniaturized magnetic field generators to enable autonomous movements.”
The researchers are also investigating how to manipulate magnetic fields more effectively to control the flight paths and movements of the wings. Fine-tuning this control will be essential for enabling more sophisticated behaviors, such as coordinated flights or precise navigation in unpredictable environments.
Broader Implications for Bio-Inspired Robotics
This study represents just one of many bio-inspired innovations that are making their way into the world of robotics. By studying nature’s solutions to challenges like efficiency, agility, and endurance, researchers are developing new technologies that can address human problems in novel and unexpected ways. The monarch butterfly’s wings have provided not just a blueprint for efficient flight but also a symbol of how the natural world can inspire creative engineering solutions.
As we continue to explore the potential of bio-inspired robotics, the intersection of biology, engineering, and technology promises to unlock new robotic capabilities that could reshape industries ranging from environmental science to healthcare to disaster management. The ability to create robots that can move with the flexibility and precision of nature’s own designs could lead to a new generation of intelligent machines that adapt to their environments with unparalleled finesse.
Conclusion
The research on magnetic wings developed by TU Darmstadt and Helmholtz-Center Dresden-Rossendorf represents a major step forward in the field of bio-inspired robotics. With their ability to mimic the energy-efficient and adaptable flight of the monarch butterfly, these wings could revolutionize environmental monitoring, rescue operations, and biomedical applications. Though challenges remain in terms of autonomy and control, the technology holds immense potential to create smarter, more adaptable robots in the near future. As further advancements are made, we can expect to see greater integration of flexible, magnetic, bio-inspired systems in various robotic applications, leading to more efficient and sustainable solutions for a wide range of industries.
Reference: Muhammad Bilal Khan et al, Bioinspired Design, Fabrication, and Wing Morphing of 3D‐Printed Magnetic Butterflies, Advanced Intelligent Systems (2024). DOI: 10.1002/aisy.202400620
