In recent years, significant progress has been made in the fields of optical communication and computing, where the use of light has paved the way for faster and more efficient data transmission. However, one area that has remained predominantly reliant on electronic technology is data storage. Traditional electronic memory systems, while efficient and widely used, struggle with some inherent limitations, such as energy consumption, latency, and scalability when applied to high-speed optical systems. Now, researchers have taken a significant step forward in overcoming these limitations by developing a programmable photonic latch, a new type of optical memory that is fast, scalable, and compatible with silicon photonics.
This photonic latch marks a fundamental breakthrough in the development of volatile memory for optical processing systems, potentially revolutionizing how we store and process data in the future. Researchers envision this innovation as a key component in the next generation of optical computers, which could dramatically enhance the speed and efficiency of various systems, from optical communication networks to advanced sensing applications.
Understanding the Photonic Latch
A latch is a basic memory device used in electronic circuits to store information in the form of a bit. In traditional electronic systems, a latch can switch between two states, typically “set” (representing a 1) and “reset” (representing a 0), depending on the inputs it receives. This binary system allows the latch to hold information temporarily, making it a fundamental building block in digital electronics.
The programmable photonic latch introduced by the researchers works on a similar principle but employs light rather than electrical signals. By utilizing silicon photonics—a technology that integrates light-based components with conventional semiconductor materials—the researchers have created a high-speed, energy-efficient optical memory unit. Unlike traditional electronic memory, which relies on the transfer of data between electronic components, this new optical memory can store data optically, eliminating the need for frequent conversions between light and electrical signals. This characteristic significantly reduces the energy consumption and latency typically associated with traditional data storage methods.
The Promise of Fast and Scalable Optical Memory
One of the key advantages of the programmable photonic latch is its scalability. In contrast to traditional electronic memory systems, which can encounter performance degradation when multiple memory units interact due to power loss and interference, the photonic latch units are designed to function independently. Each memory unit has an independent input light source, which means that multiple memory units can work without impacting one another’s performance. This independence is a crucial factor for building large-scale memory systems that can handle vast amounts of data in real-time applications.
Moreover, the photonic latch units are designed to be compatible with existing silicon photonic systems. This compatibility allows the integration of the new memory technology into current systems without the need for entirely new manufacturing processes, making it not only a faster but also a cost-effective solution. Additionally, the use of silicon photonics opens up the possibility of using commercially available materials and fabrication processes, which further drives down production costs and increases yield rates.
The photonic memory units are also wavelength-selective, meaning they can store multiple bits of data by using different wavelengths of light. This capability enables wavelength division multiplexing (WDM), a technology that allows for the simultaneous transmission of multiple data streams over a single optical fiber by assigning each data stream a different wavelength. By enabling multi-bit storage within a single memory unit, the photonic latch significantly increases the potential memory density, allowing for the development of high-capacity memory systems in optical processing systems.
How the Programmable Photonic Latch Works

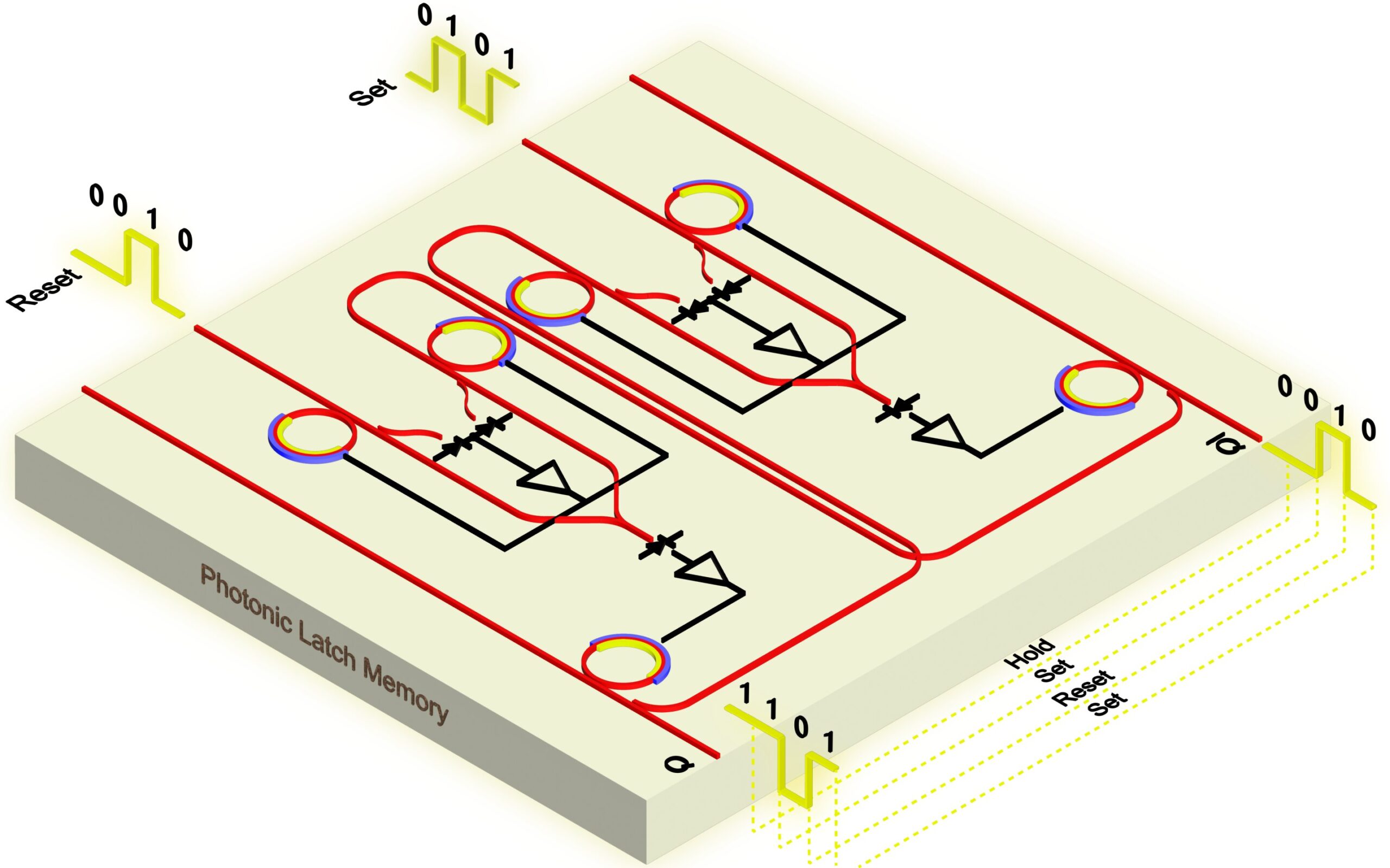

The researchers designed the photonic latch based on silicon photonic micro-ring modulators, which are integrated into a programmable silicon photonic platform. A micro-ring modulator is a device that can control the flow of light through a ring-shaped waveguide, enabling the modulator to turn the light on or off depending on the input signal. By combining two such modulators, the researchers were able to create an optical latch that stores and retrieves data at high speeds.
In their proof-of-concept experiment, the researchers demonstrated how the photonic latch could perform the fundamental functions of set, reset, and hold in response to varying optical inputs. They tested the device under various conditions, including input power fluctuations, and observed that the latch consistently produced the correct outputs. The response time of the memory was measured to be in the tens of picoseconds, which is significantly faster than the clock speeds of current advanced digital systems. This quick response time is one of the factors that makes the programmable photonic latch a promising candidate for future high-speed optical computing.
High-Speed Data Storage for Emerging Technologies
The implications of this technology are far-reaching, particularly for applications in optical communications, sensing, and data processing. As Farshid Ashtiani, the study’s author from Nokia Bell Labs, points out, current optical systems still face a major hurdle in the form of data storage. While optical communication has made significant strides, data is often stored using electronic memory, which introduces inefficiencies due to the need for frequent conversions between light and electrical signals.
In fields such as large language models (like ChatGPT), artificial intelligence, and machine learning, these inefficiencies become more pronounced due to the massive amounts of data that must be processed quickly and continuously. Optical memory systems, such as the programmable photonic latch, offer a solution by enabling faster, more efficient data storage and retrieval.
In the future, this technology could play a pivotal role in supporting real-time data processing and enabling optical computing at speeds that are orders of magnitude faster than what is possible with current electronic systems. While commercial optical computers are still a distant goal, this high-speed optical memory technology serves as a critical step toward realizing that vision.
The Path Forward: Scaling and Integration
Despite the promising results demonstrated in the proof-of-concept experiment, the researchers acknowledge that there are still several hurdles to overcome before the programmable photonic latch can be widely implemented in practical systems. The next steps in their research will involve scaling the technology to accommodate a larger number of memory units. By increasing the density of the photonic memory on a single chip, they hope to create more powerful and compact optical memory systems.
Additionally, they aim to develop ways to integrate both the photonic memory circuits and the electronics needed to control them within a single manufacturing process. This integration would streamline the production of photonic memory chips and reduce the complexity of combining optical and electronic components in a single system.
The researchers are also exploring wavelength-selective integration, which would allow the photonic latch memory units to support higher data throughput and improve memory density by utilizing a broader range of wavelengths. These advancements would enhance the overall performance of optical memory systems and make them more practical for real-world applications.
Conclusion: A New Era of Optical Memory
The development of the programmable photonic latch represents a major breakthrough in optical memory technology. By harnessing the power of silicon photonics, the researchers have created a scalable, fast, and efficient memory unit that could play a crucial role in the future of optical computing and communications. With its low power consumption, fast response time, and compatibility with wavelength division multiplexing, the photonic latch has the potential to revolutionize the way data is stored and processed in optical systems.
As optical technologies continue to advance, innovations like the programmable photonic latch will help pave the way for more efficient and powerful systems capable of handling the demands of modern applications, from high-speed data transmission to artificial intelligence. While commercial optical computers remain a distant goal, this new optical memory technology brings us one step closer to a future where light-based computing systems may one day surpass traditional electronic systems in both speed and efficiency.
Reference: Farshid Ashtiani, A programmable photonic latch memory, Optics Express (2024). DOI: 10.1364/OE.536535
