In the intricate theater of light and electrons, a quiet revolution is unfolding—one that could change how we harness radiation for the most sensitive imaging, precise sensing, and ultra-fast communication. At the heart of this transformation is a phenomenon known as Superradiant Smith-Purcell Radiation (S-SPR). Long theorized but hard to tame, this exotic form of free electron radiation has now been captured, refined, and compacted—literally—by a team of pioneering scientists from Tsinghua University in China.
Their invention? A handheld device no larger than a small textbook, yet powerful enough to generate ultra-narrow and continuously tunable radiation—a feat that once required massive, room-sized electron accelerators. And the secret to this quantum leap? A groundbreaking new mechanism called Pump-Induced Stimulated Superradiant Smith-Purcell Radiation (PIS-SPR).
Smith-Purcell Radiation: A Spark from Free Electrons
To understand the significance of this achievement, we must first step into the curious world of Smith-Purcell radiation. Discovered in 1953, this phenomenon occurs when a beam of electrons races past a periodic metallic grating, emitting light in the process. It’s a type of free electron radiation—meaning the radiation doesn’t depend on traditional laser cavities or atomic transitions, but rather on the kinetic energy of moving electrons.
Under specific conditions, especially when electrons are arranged in tight bunches, their emitted waves overlap and interfere constructively, producing intense, coherent radiation. This superradiant version—S-SPR—holds the tantalizing promise of creating spectrally pure, directionally controlled, and tunable light across a wide frequency range, including the elusive terahertz (THz) band. But unlocking its full potential has been anything but easy.
The Barriers: Size, Stability, and Spectral Impurities
In traditional setups, generating S-SPR required bulky electron accelerators, high-energy beams, and complex vacuum systems. These setups were not only enormous and expensive, but their output lacked the spectral purity theoretically possible. The reason? A trifecta of technical headaches:
- Instability in electron kinetic energy introduced fluctuations.
- Coulomb effects—mutual repulsion between electrons—disrupted uniform bunching.
- A finite number of electron bunches limited the coherence of emitted radiation.
These factors broadened the radiation’s spectral linewidth, often by several megahertz—far from the ultra-narrow bandwidths ideal for high-precision technologies.
Enter the innovation from Tsinghua University: a compact device weighing just 1.68 kilograms, measuring 22 cm × 7 cm × 6.5 cm, and capable of producing radiation with linewidths as fine as 0.3 kHz. That’s 6 orders of magnitude narrower than some conventional S-SPR systems.
Unveiling PIS-SPR: A New Chapter in Radiation Physics
At the core of this advancement is a new physical mechanism: Pump-Induced Stimulated Superradiant Smith-Purcell Radiation (PIS-SPR). The name may sound complex, but the underlying idea is elegant and powerful.

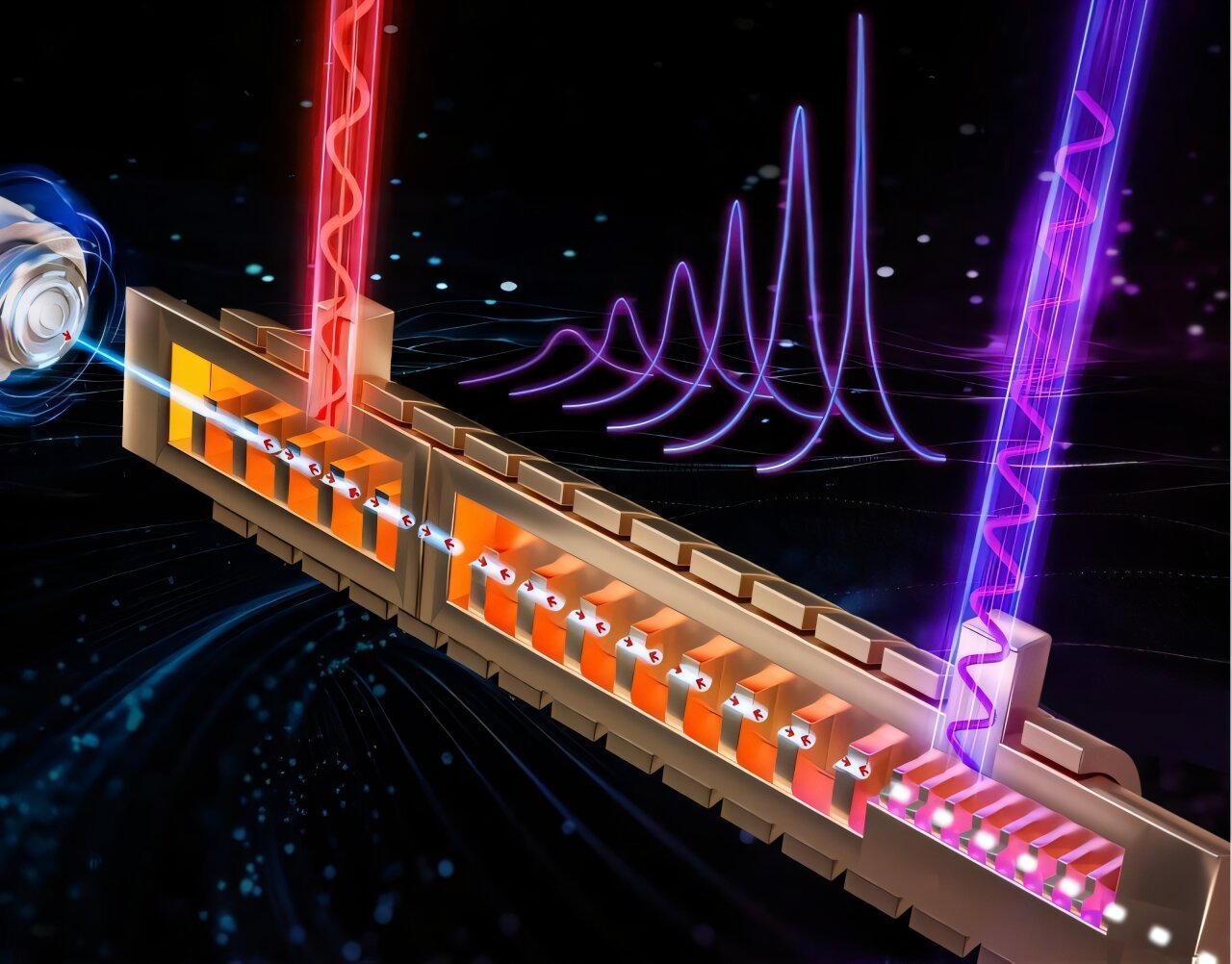

Imagine introducing a low-frequency, low-power terahertz (THz) pump wave to the system. As it strikes the grating, it excites a localized electromagnetic mode—a kind of standing wave that travels with the electron beam. This wave then acts as a sculptor, pre-bunching the electrons into uniform clusters before they interact with the grating.
As these bunched electrons travel, they emit light at the same frequency as the pump wave. But here’s the twist: the system includes a Fabry-Pérot (F-P) cavity, a simple optical resonator that traps and enhances the electromagnetic field. This enhancement leads to positive feedback—more precise bunching, more coherent radiation, and ultimately, stimulated S-SPR.
In this three-stage system—pre-bunching, compression, and harmonic emission—the radiation quality is dramatically improved. According to the researchers, the PIS-SPR effect effectively overcomes all three major limitations: electron instability, Coulomb dispersion, and finite bunching.
The Numbers: A New Benchmark for Precision Radiation
So, just how good is this new system? The scientists measured the radiation linewidth and found it could be continuously tuned from 900 kHz down to a record-breaking 0.3 kHz. They achieved this by varying the number of electron bunches from ~10⁵ to ~10⁹—a precise control made possible by the pump wave and cavity feedback.
Compared with legacy systems that rely on massive accelerators, the Tsinghua team’s device shrinks the linewidth by 2 to 6 orders of magnitude. And it does so while fitting in the palm of your hand.
In addition to tunability, the researchers explored harmonic generation, using small-period gratings to produce high-frequency harmonics of the base THz wave. This opens the door to radiation sources across the microwave to infrared spectrum, further broadening the device’s utility.
Back to Basics: BWM and the Evolution to PIS-SPR
Interestingly, the device doesn’t require a pump wave to operate—at least not at first. In its passive mode, the system works via Backward Waveguide Mode (BWM). In this configuration, electrons still emit S-SPR, including higher harmonics like the third order. But the linewidth in this mode remains in the megahertz range, far less precise than in PIS-SPR mode.
What’s fascinating is that the researchers observed a gradual transition from BWM to PIS-SPR by simply increasing the pump power from 0 mW to 60 mW. As the pump energy rises, the stimulated process begins to dominate, suppressing BWM and yielding dramatically narrower linewidths.
This experimental observation doesn’t just demonstrate control—it validates the theoretical model behind PIS-SPR. For the first time, scientists could watch in real time as the radiation process shifted from spontaneous to stimulated, from broad to laser-like precision.
A Universe of Applications in Your Hand
With such unprecedented control over spectral purity and radiation compactness, the potential applications of this technology are vast and varied.
In medical imaging, ultra-narrow linewidth radiation in the THz range could enhance contrast and resolution in soft tissue scans, detecting anomalies invisible to X-rays or MRIs. In chemical sensing, it could allow for the detection of minute differences in molecular absorption, useful for security screening, pollution monitoring, or even food safety.
In wireless communications, especially those exploring the THz band for 6G and beyond, such a source could offer coherent, frequency-locked signals—the backbone for stable high-speed links in short-range communication.
Moreover, the researchers suggest that this technology might be extended for on-chip electron acceleration, potentially miniaturizing particle physics experiments and semiconductor manufacturing tools.
Even in fundamental research, the ability to generate frequency-tunable electron bunches makes the device a powerful probe for studying micro- and nano-scale materials, where interactions with light can reveal structural and electronic properties.
A Quantum Leap from the Laboratory Bench
This work represents not just a clever engineering achievement, but a conceptual leap in how we understand and control radiation. It fuses free electron physics, quantum optics, and electromagnetic wave theory into a compact package—something few thought possible just a decade ago.
For Professor Fang Liu, Yidong Huang, and their collaborators, this is just the beginning. Their work, published in the journal eLight, paves the way for an entirely new class of compact, precision radiation devices. Devices that may one day be as common in labs and clinics as lasers and LEDs are today.
Their success underscores a central truth of scientific progress: sometimes, the biggest revolutions come in the smallest packages.
Reference: Yuechai Lin et al, Pump-induced stimulated superradiant Smith-Purcell radiation with ultra-narrow linewidth, eLight (2025). DOI: 10.1186/s43593-025-00083-z
