Gaming Technology Helps Accelerate Collision Detection in Fusion Reactors

In a groundbreaking fusion of gaming technology and advanced nuclear science, researchers have unveiled an innovative algorithm that dramatically accelerates the detection of particle collisions within virtual nuclear fusion reactors. What’s even more remarkable? This futuristic leap was inspired by the same principles used to detect whether a bullet hits its target in a video game.

Developed by Professor Eisung Yoon and his team at the Department of Nuclear Engineering, Ulsan National Institute of Science and Technology (UNIST), the new algorithm reimagines how high-speed particle collisions are identified in complex plasma environments. Published in Computer Physics Communications, their research showcases how gaming-inspired logic can transform the quest for limitless clean energy.

From Bullets in Games to Particles in Plasmas

High-speed collisions are a critical concern inside fusion reactors—giant machines that aim to recreate the energy of the sun here on Earth. In both virtual simulations and real-world experiments, researchers must track billions of particles moving at incredible velocities. But like the perfectly timed bullet in a first-person shooter, even a tiny particle striking a sensitive area of the reactor can cause significant damage or disrupt the fusion reaction.

Traditionally, identifying where these particles might collide required vast computational resources. Methods like the Octree algorithm—which partitions space into hierarchical cubes—have long served as a staple in simulation. Yet, they come with a cost: slow performance and inefficient computation when scaled to the demands of fusion physics.

That’s where Professor Yoon’s team saw an opportunity.

Borrowing from the world of gaming physics engines, where collision detection must happen in milliseconds to maintain seamless visual experiences, the team developed a streamlined algorithm that calculates only when necessary. The result? A blisteringly fast, efficient system capable of predicting collisions up to 15 times faster than existing techniques.

The Virtual Tokamak: V-KSTAR

The algorithm was put to the test in V-KSTAR—a virtual twin of Korea’s premier fusion experiment, the Korean Superconducting Tokamak Advanced Research (KSTAR) device. V-KSTAR mirrors the geometry, behavior, and physics of the actual reactor in a fully digitized 3D environment. It is the cutting edge of virtual prototyping for fusion research, allowing scientists to model, tweak, and visualize plasma behaviors and reactor interactions without risking expensive real-world infrastructure.

Within V-KSTAR, the algorithm had to analyze the behavior of approximately 300,000 high-energy particles navigating a chamber whose walls are represented by a mesh of 70,000 triangles. In earlier systems, every potential collision had to be checked through a costly loop of spatial and geometric calculations. Now, using the new algorithm, 99.9% of these computations are skipped—replaced by lightning-fast arithmetic that determines in advance whether a collision check is even necessary.

The Power of Virtual Vision

This computational leap doesn’t just improve processing time—it redefines how fusion researchers and designers interact with the data. By visually mapping out collision points and heat concentration zones inside the V-KSTAR interface, the algorithm offers an intuitive, color-coded glimpse into how neutral particles behave inside the reactor.

This is crucial for multiple reasons. Firstly, it allows non-experts or engineers from other disciplines to immediately understand areas of potential risk without sifting through pages of raw data. Secondly, it opens up new ways to optimize reactor design, guiding adjustments to shielding, magnetic field tuning, or injector placement to prevent damage from rogue particles.

“The goal was to make collision visualization not just faster, but more human-readable, more actionable, and less abstract,” explains Professor Yoon. “We wanted to bring fusion diagnostics out of the spreadsheet and into the engineer’s line of sight.”

Harnessing the Artificial Sun

The context of this development is nothing short of stellar—literally. Nuclear fusion, the process of combining light atomic nuclei to form heavier ones, releases immense energy without the long-lived radioactive waste of fission. It’s the engine that powers stars, including our sun.

To replicate this reaction on Earth, scientists inject high-energy neutral particles into the reactor core to superheat plasma—an ultra-hot, ionized gas. The temperature must reach hundreds of millions of degrees, at which point nuclei can overcome their natural repulsion and fuse. However, when some of those injected particles stray and strike the walls of the containment vessel, they can degrade the materials, generate unwanted heat spots, or compromise the delicate magnetic fields that keep the plasma stable.

Being able to accurately and quickly detect where and when these particles collide is vital for ensuring the reactor’s longevity, efficiency, and safety.

Smarter Than Octrees: A Lean Collision Engine

So how exactly does the new algorithm work?

In simple terms, rather than dividing the entire 3D space and checking for particle presence in each cube (as the Octree method does), Yoon’s system prioritizes relevance. It performs calculations only when there’s a plausible chance of collision. This is done by predicting trajectories and filtering out scenarios that pose no collision risk.

Think of it as a smart security guard who doesn’t stop every single person but only investigates those matching certain risk profiles. This selectiveness translates into monumental computational savings—an essential feature when operating virtual environments that simulate complex systems in real time.

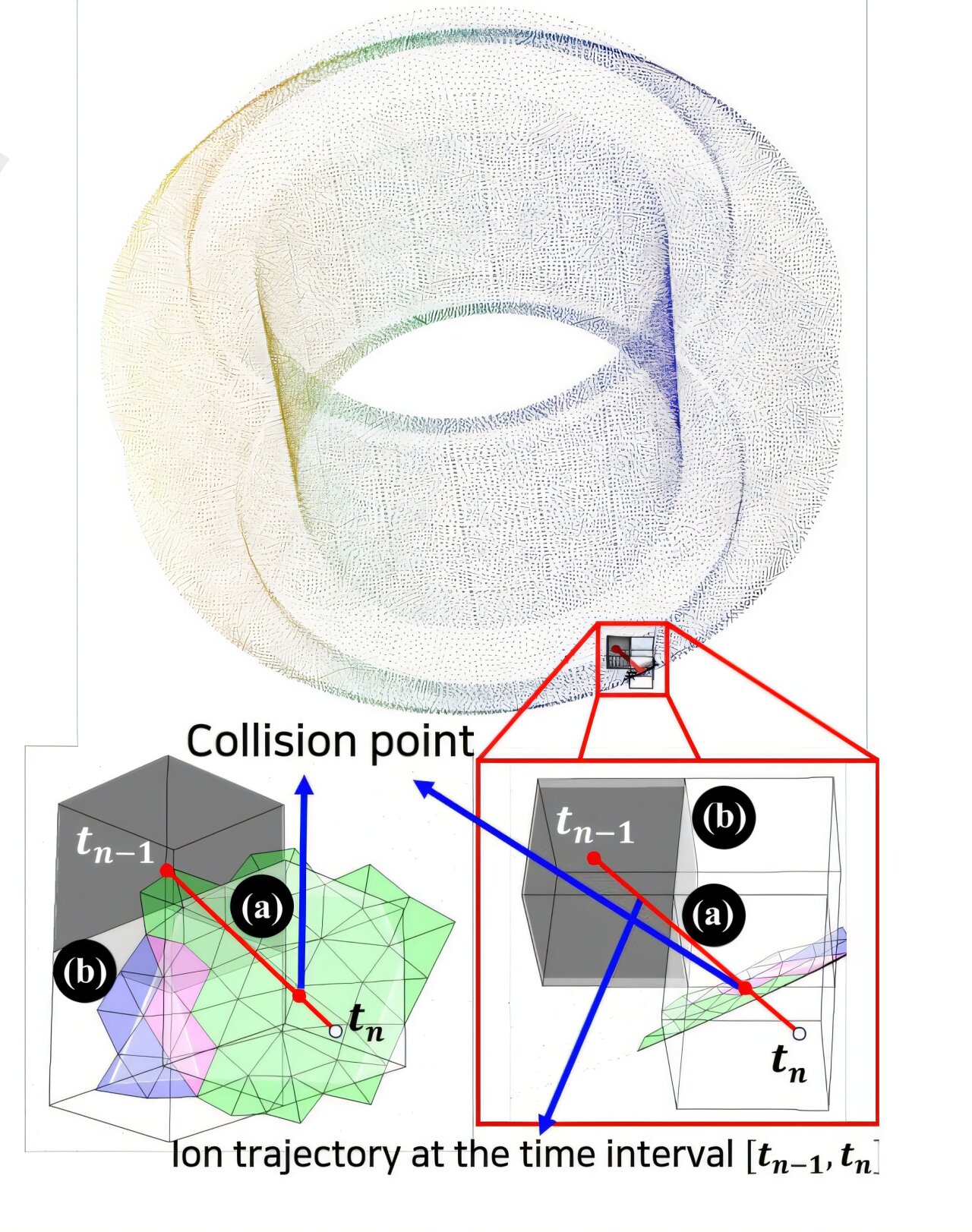

Moreover, the algorithm uses triangle partitioning to identify the precise intersection points of particles with curved, irregular reactor walls—something earlier models struggled to do efficiently. With this improvement, simulations can now resolve extremely detailed interactions within the reactor’s multi-layered geometry.

Real-World Impact and Global Relevance

Though this development was tested in a Korean system, its implications are global. Every fusion project—from ITER in France to SPARC in the U.S.—grapples with the same computational bottlenecks when trying to simulate particle-wall interactions. By integrating a gaming-inspired algorithm that compresses computation while preserving precision, fusion research around the world could accelerate its design feedback loops.

Already, the Korean Institute of Fusion Energy (KFE) has integrated this algorithm into their neutral particle beam simulators, upgrading them to full 3D capacity. This allows for more realistic modeling of beam paths, particularly in how they interact with diagnostics and magnetic fluctuations—two variables that can dramatically influence reactor behavior.

Looking Ahead: GPU-Powered Simulations

And this is just the beginning.

Professor Yoon’s team is already setting their sights on GPU-accelerated computing, leveraging the immense parallel processing power of graphics cards to handle particle physics simulations at previously unimaginable speeds. Whereas traditional CPUs execute processes sequentially, GPUs can handle thousands of calculations simultaneously, making them ideal for processing particle interactions across massive datasets.

“Our aim is to harness supercomputing clusters based on GPU architectures to further cut down simulation time,” says Professor Yoon. “This will enable us to model even more complex fusion scenarios in real time and support new experimental configurations.”

With GPU acceleration and refined algorithms, fusion scientists could potentially run entire campaign simulations overnight instead of over days or weeks—greatly enhancing the pace at which designs can be tested, verified, and improved.

The Unexpected Synergy of Science and Play

The story behind this innovation is more than a tale of scientific rigor—it’s a vivid reminder that inspiration often comes from unexpected places. In this case, from the world of digital games, where physics simulations must feel real enough to be immersive but fast enough to never lag.

By bridging that world with the domain of fusion energy—arguably one of the most complex fields in modern science—Professor Yoon’s team has shown that creativity, interdisciplinary thinking, and technology reuse can yield breakthroughs that push humanity closer to its clean energy goals.

“This algorithm doesn’t just help us simulate better—it helps us understand better, design better, and ultimately build better reactors,” Yoon concludes. “It’s a small technological leap that could have an enormous ripple effect.”

Reference: Taeuk Moon et al, Development of novel collision detection algorithms for the estimation of fast ion losses in tokamak fusion device, Computer Physics Communications (2024). DOI: 10.1016/j.cpc.2024.109490
