Researchers at the Lawrence Livermore National Laboratory (LLNL) have made a groundbreaking achievement by using a combination of the National Ignition Facility (NIF) laser and ultra-light metal foams to produce the brightest X-ray source ever created. This new source of X-rays is about twice as bright as previous solid metal sources, a significant improvement that opens new possibilities for studying extremely dense matter, such as plasmas formed during inertial confinement fusion (ICF).
The team’s findings were recently published in the scientific journal Physical Review E, and they represent a key milestone in the field of high-energy X-ray production. The team’s research is particularly important for advancements in fusion research, where understanding how dense, hot plasma behaves is crucial for achieving sustainable fusion energy.
Laser-Driven X-ray Generation: A Sophisticated Approach
The process used to create these ultra-bright X-rays is reminiscent of the basic principle behind the X-ray machine at your dentist’s office—but with a twist. Jeff Colvin, a scientist at LLNL, compared the process to a common dental tool used to detect cavities. In a dentist’s X-ray machine, an electron beam strikes a heavy metal plate, and in doing so, produces X-rays when the electrons interact with the metal’s electrons. The technique used at NIF, however, replaces the electron beam with a high-power laser.

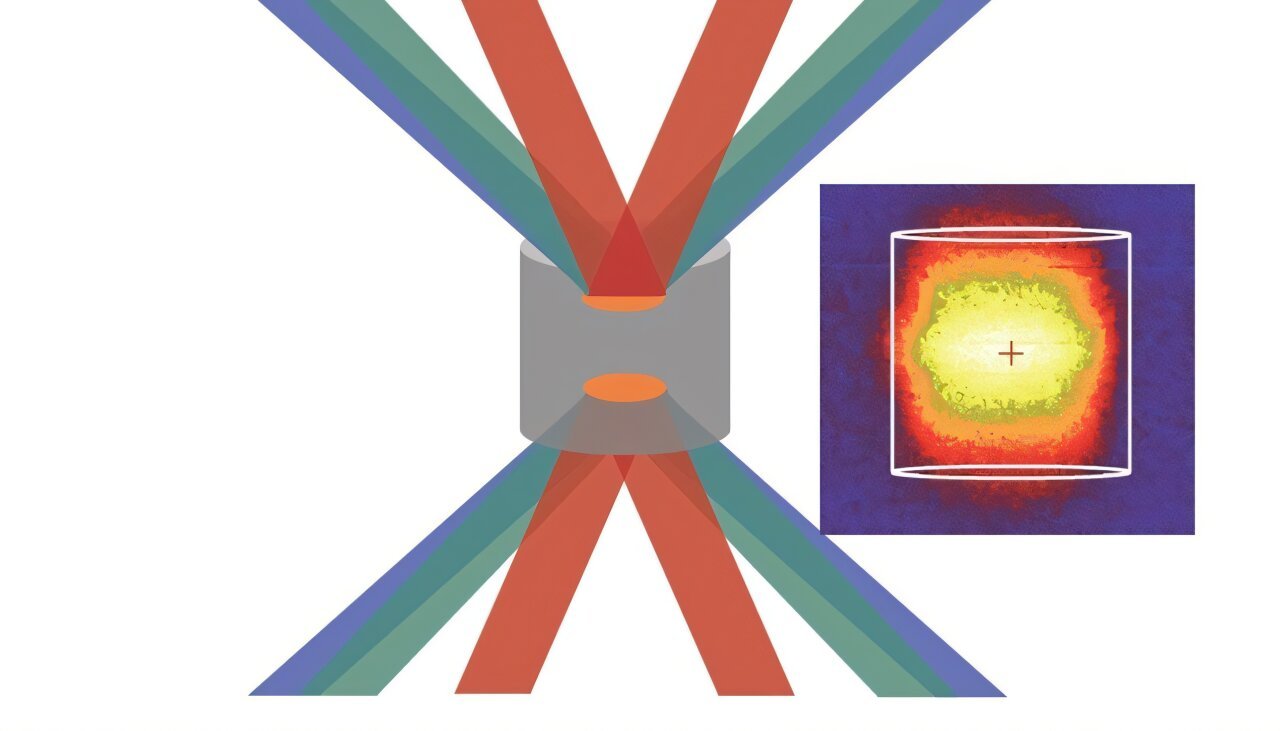

“The high-power laser beam at NIF is directed to interact with the silver atoms of the metal foam, effectively creating a plasma,” Colvin explained. The plasma’s energetic behavior enables the production of X-rays, and this process is highly efficient, producing radiation of significantly higher brightness than traditional methods that rely on solid metals.
The importance of choosing silver as the target material cannot be overstated. The atomic number of an element plays a critical role in the energy of the X-rays it produces. Essentially, the higher the atomic number, the higher the energy of the resulting X-rays. By using silver, a metal with a relatively high atomic number, the researchers were able to produce X-rays with an energy level greater than 20,000 electron volts (eV). This high energy level is valuable for imaging and studying extremely hot and dense environments, such as those encountered in fusion experiments and astrophysical studies of stars and black holes.
The Role of Ultra-Light Metal Foams
One of the key innovations in this experiment was the use of ultra-light metal foams. To maximize the X-ray production efficiency, the team employed silver foam structures with an extremely low density—about one-thousandth of the density of solid silver and comparable to the density of air.
Tyler Fears, another LLNL researcher involved in the project, described the fabrication process for these metal foams. “We froze the silver nanowires, which were suspended in a solution, inside a mold. Then we applied a supercritical drying technique to remove the solution, which left behind a porous, low-density foam structure,” Fears explained. This novel method allowed the team to create a metal foam that would optimize the laser’s interaction with the material, creating an intense burst of energy.
The unique properties of the foam helped achieve higher energy output because the NIF laser could efficiently heat a larger volume of the material. The heat propagated faster through the foam, and the entire foam structure reached extremely high temperatures in just 1.5 billionths of a second.
In solid materials, heat conduction is relatively slow, but in porous metal foams, the laser energy is absorbed more efficiently across a larger surface area. This rapid heat transfer helped amplify the intensity of the X-rays produced during the interaction.
Optimization Through Foam Density
To further improve the performance of their X-ray source, the researchers explored varying foam densities. By altering the density of the metal foam, they were able to fine-tune the energy output of the X-rays. The right balance of foam density helped them maximize the efficiency of the X-ray generation while ensuring the material remained structurally intact during the extreme conditions induced by the high-power laser.
This optimization process was not only critical for enhancing energy production, but also for generating consistent X-ray emissions. By changing the foam’s characteristics, the team could pinpoint the ideal conditions for the production of highly energetic X-rays capable of probing difficult-to-analyze phenomena.
New Insights into Metal Plasma Behavior
Along with creating the bright X-ray source, the researchers gained new insights into the behavior of the metal plasmas created during the experiment. They employed advanced data analysis techniques to examine the nature of the plasma generated when the laser struck the foam. The results revealed some surprising discoveries. Unlike what is typically assumed in models used to understand inertial confinement fusion (ICF) experiments, these new plasmas were found to be far from thermal equilibrium.
In conventional plasma models, scientists generally assume that electrons, ions, and photons all share approximately the same temperature—an assumption rooted in the understanding of equilibrium thermodynamics. However, this new study uncovered that in the plasmas generated by the laser and metal foam combination, the temperature distribution was far more uneven than expected.
“These plasmas are not in thermal equilibrium, which means that our previous assumptions about how heat is transported and distributed within these systems may need to be reconsidered,” Colvin remarked. This finding suggests that new models must be developed to better account for the dynamics of such metal plasmas, especially in the context of future fusion experiments and astrophysical modeling.
The plasma behavior observed in these experiments points to a need for refined models for heat transport, plasma confinement, and the interactions between different plasma constituents under extreme conditions. These developments could influence research on a range of applications, from better understanding the behaviors of hot plasmas in laboratory settings to gaining insights into astrophysical processes like those occurring inside stars.
A Promising Path for Inertial Confinement Fusion and Beyond
This new X-ray source holds vast potential for multiple areas of scientific research. At the forefront is inertial confinement fusion (ICF)—the process of compressing fuel pellets of deuterium and tritium with powerful lasers to achieve the conditions necessary for nuclear fusion. Understanding how plasmas behave under extreme conditions is crucial for advancing the field of ICF, which has long been considered one of the most promising paths to achieving clean, sustainable nuclear energy.
The ability to generate high-energy X-rays with unprecedented brightness means scientists could gain much clearer and more detailed images of fusion plasmas. This could vastly improve the precision and efficiency of diagnostic tools used to observe fusion reactions and heat transport within plasma environments. The new X-ray source could also enhance research in other areas of condensed matter physics, material science, and planetary sciences, particularly for studying dense materials under extreme conditions.
Looking beyond fusion research, the implications of this development extend to fields such as astrophysics. By generating highly energetic X-rays, researchers could simulate and study phenomena that occur in the cores of stars, in black holes, and throughout the universe—enabling us to explore some of the most extreme environments known to science.
Conclusion
In summary, the creation of the brightest X-ray source to date using the National Ignition Facility’s high-power laser and ultra-light metal foams marks a monumental advancement in the fields of material science, plasma physics, and fusion research. This breakthrough could provide valuable new insights into dense matter and plasma behaviors, leading to significant improvements in fusion experiments and enabling better diagnostic tools for other scientific disciplines. By continuing to explore novel materials and advanced analytical techniques, LLNL’s research team is pushing the boundaries of what is possible in high-energy physics and making important contributions toward future clean energy solutions.
Reference: M. J. May et al, Thermal energy transport in laser-driven high X-ray conversion efficiency metallic silver nanowire foams, Physical Review E (2025). DOI: 10.1103/PhysRevE.111.015201
